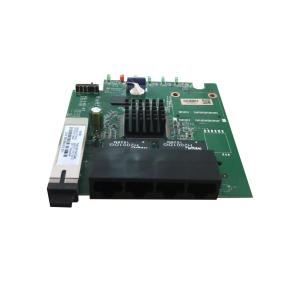

1. EPON ONU Module
Summary
HSO1004-M is the supporting module in the EPON system user end equipment, and is used to terminate services transmitted from the OLT(optical line terminal)through the EPON passive optical network. In conjunction with the OLT, the ONU can provide various broadband services to connected users. It meets the requirements of the corresponding ONU equipment in the "YD/T 1475-2006 Access Network Technical Requirements - Ethernet-based Passive Optical Network (EPON)" and "China Telecom EPON Equipment Technical Requirements". Ministry of Industry and Information Technology telecommunications equipment network license. This product satisfies the application of FTTX and FTTH in the two-way network of broadcasting and TV, and supports hybrid networking with mainstream OLTs to minimize the cost of network construction for operators.
Features
█ Its host performance is tested by the ministry of industry and information technology and licensed for telecommunications equipment;
█ The performance of the whole machine is tested by electromagnetic compatibility and safety. Obtained the national compulsory product certification (2015011608758829);
█ ONU supports EPON, 10G EPON, and is compatible with mainstream OLT vendors;
█ Modular structure, plug and play on demand.
Technical Specifications
| Items | Unit | Performance Index | |
| Optical Characteristics | Working Wavelength | nm | TX1310, RX1490 |
| Optical Transmission Power | dBm | -1~+4 | |
| Optical Receiving Sensitivity | dBm | ≤-27 | |
| Optical Connector | / | SC/UPC | |
| Ports | User End Ethernet Port | pcs | 4(10/100Mbps |
|
Others | Power Supply /Consumption | V/W | Powered by the Host, DC12(0.5A)/3.5 |
| Working/Storage Temperature | ℃ | -25~55/-40~75(Humidity 8~80%) | |
| Structure Size | mm | 115×105×20 | |
| Standard | / | National Information Department EPON Interworking Agreement | |
Application
Order Info
| Product Name | Model | Description |
| EPON ONU Module | HSO1004-M | EPON 4FE, DC12V 0.5A Power Supply |
